Power Steering Relocation Kit for Honda K20/K24 K-Swap – EG EK DC2 CRX

Power Steering Relocation Kit for Honda K20/K24 K-Swap – EG EK DC2 / RSX

Retain hydraulic power steering while relocating the pump to the factory A/C compressor position for a cleaner K-swap engine bay and improved clearance.

Features

• Retains hydraulic power steering

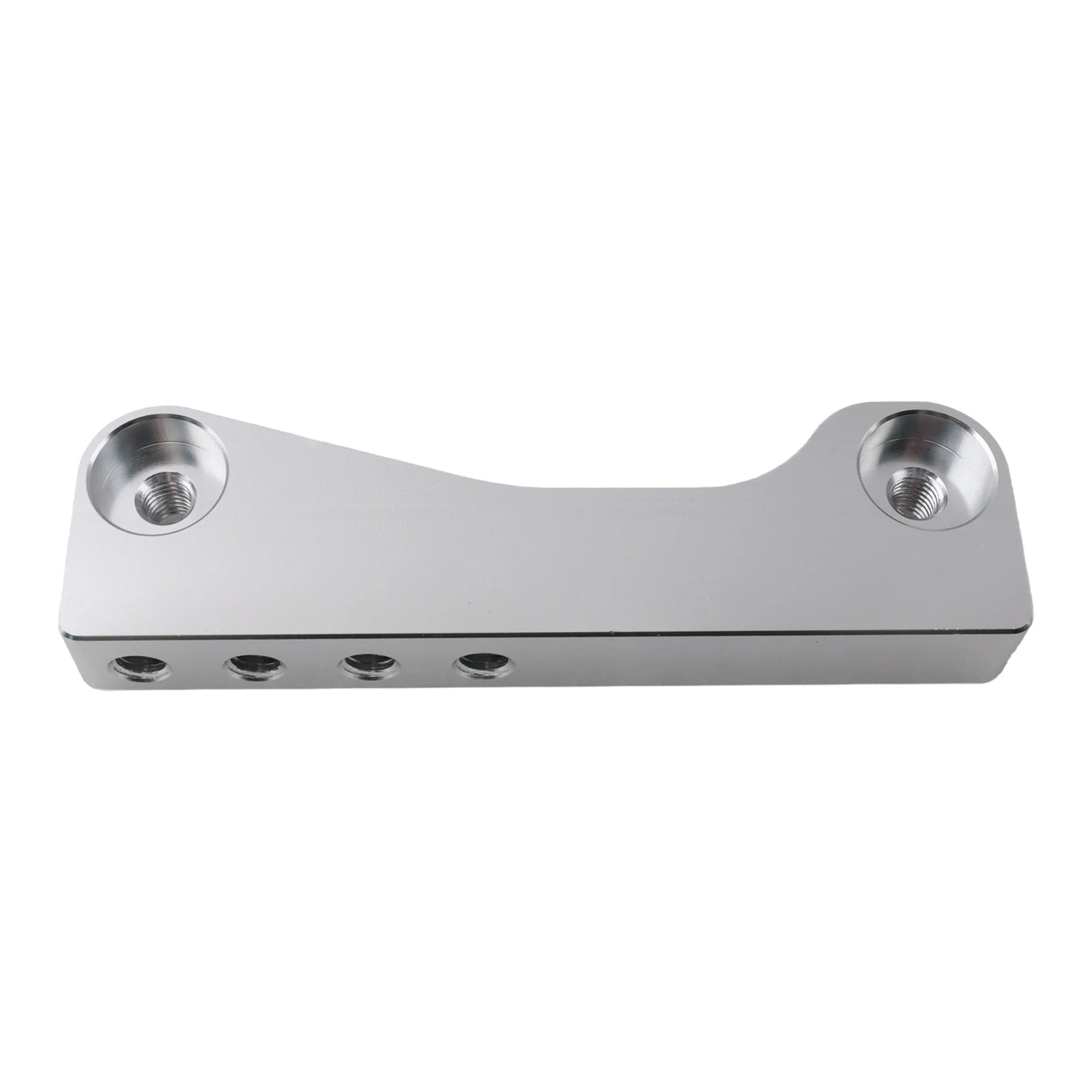

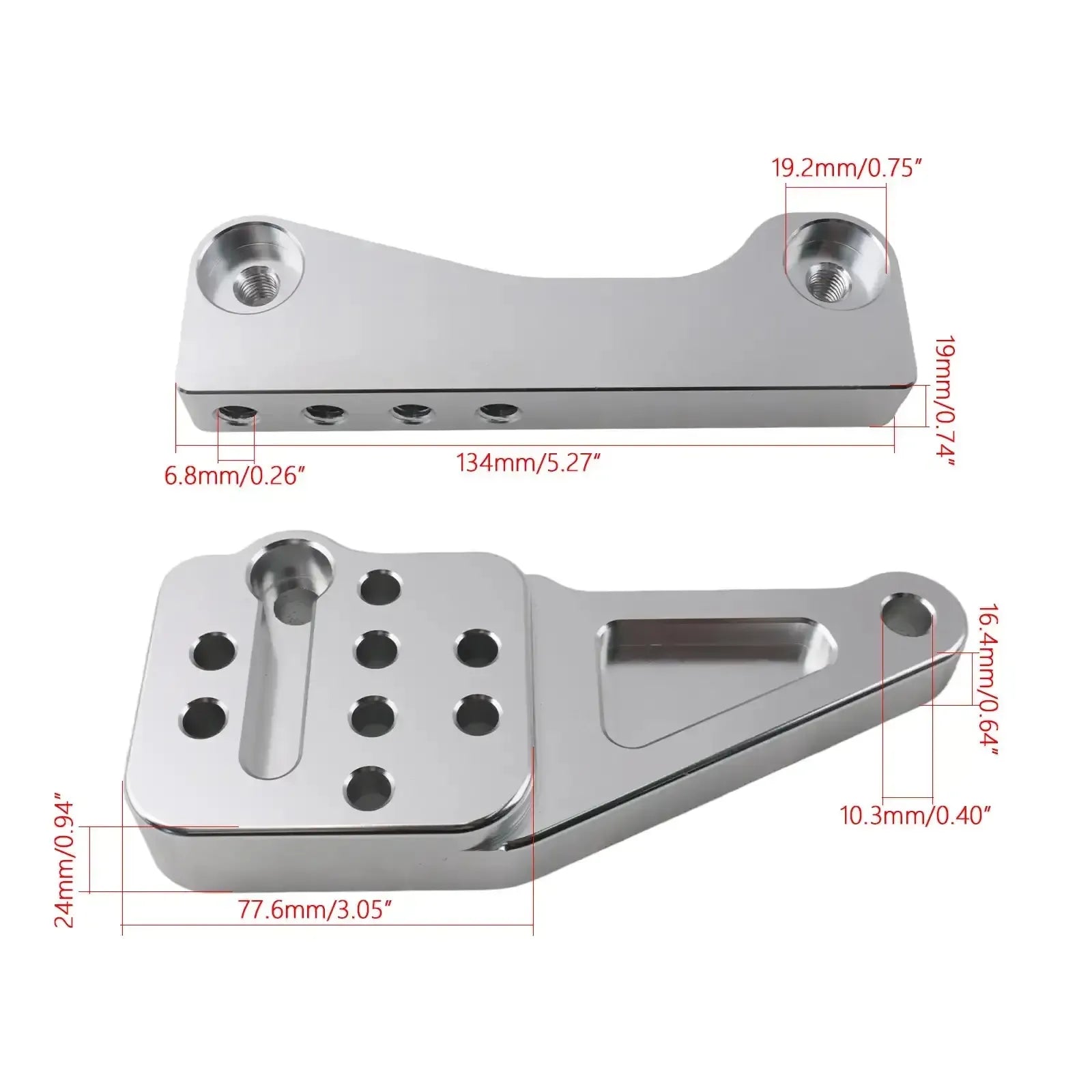

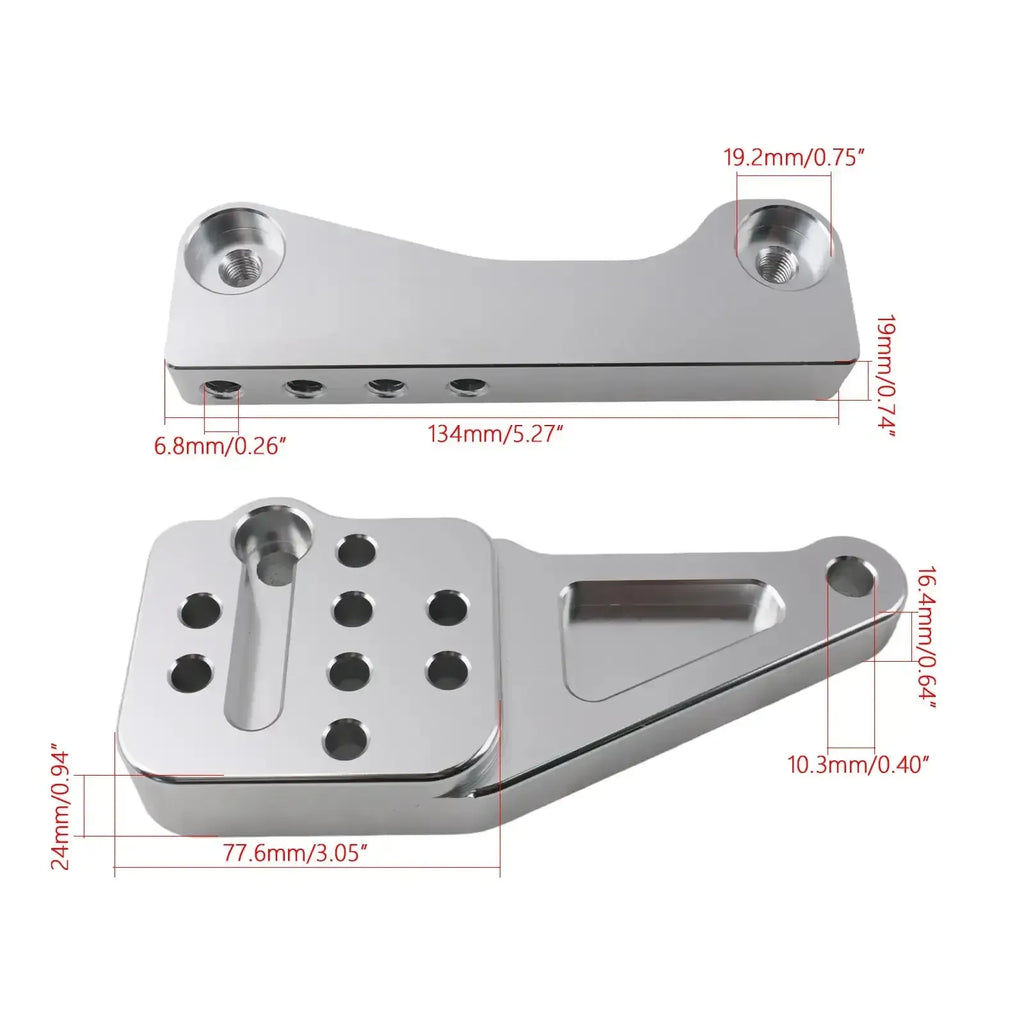

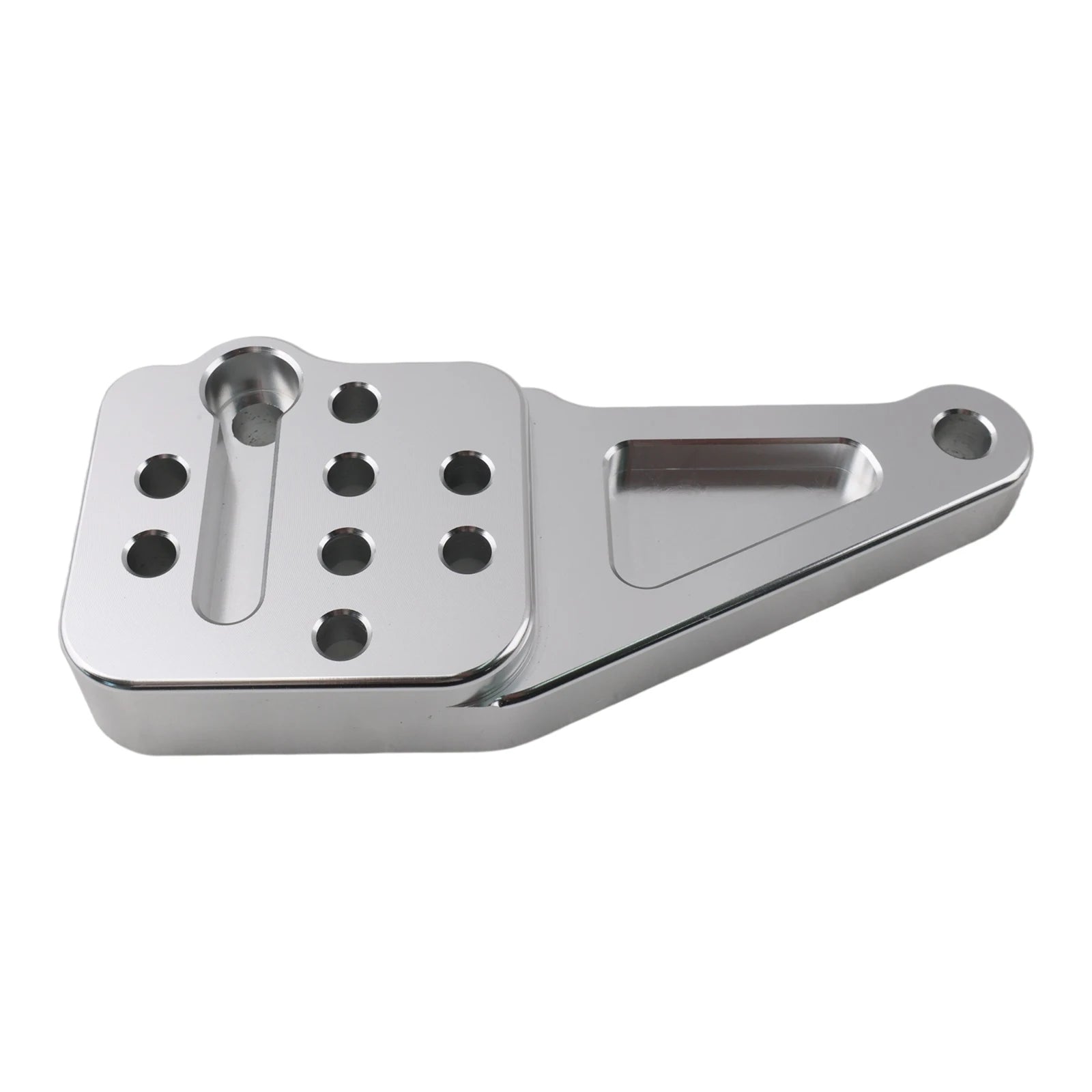

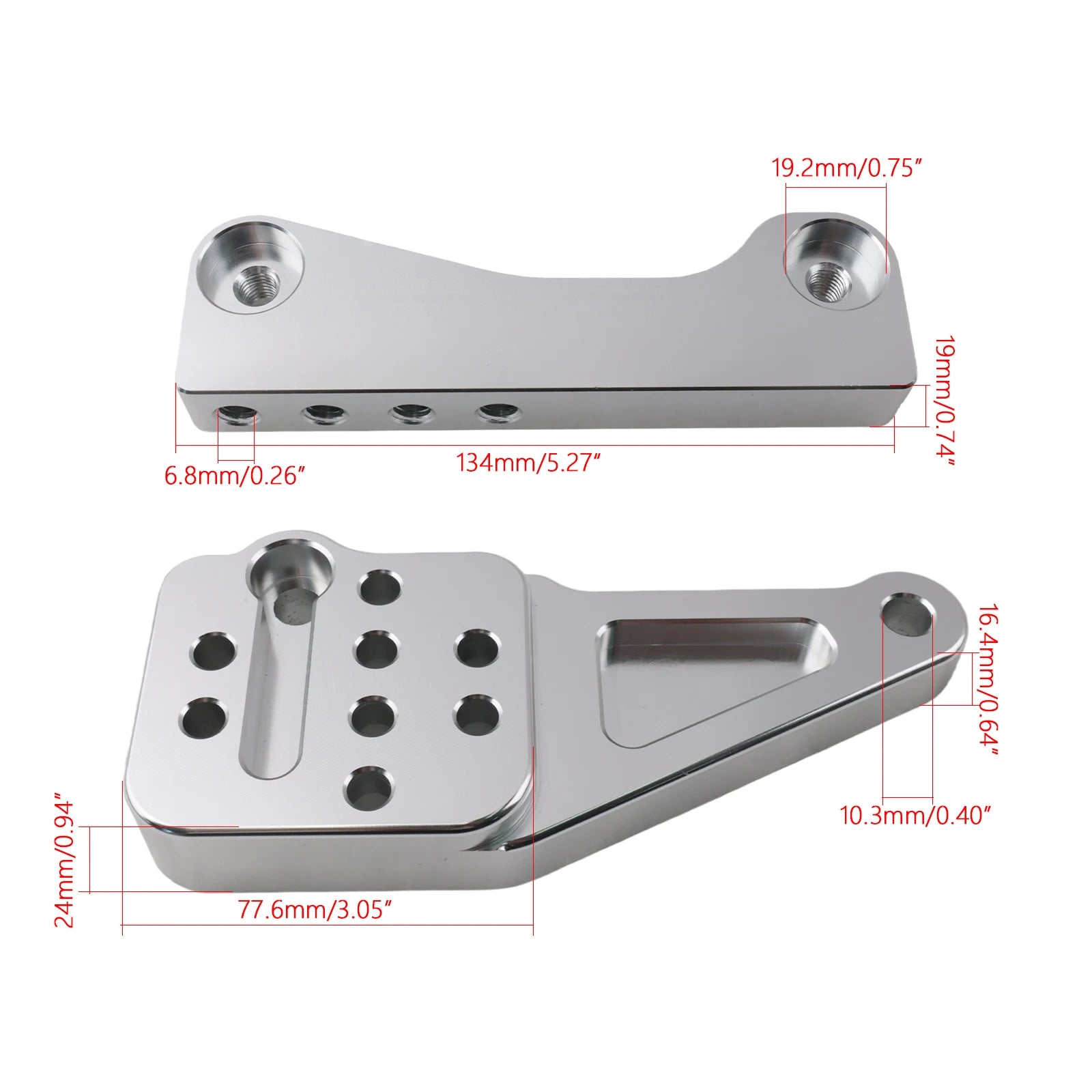

• Dual-position relocation bracket

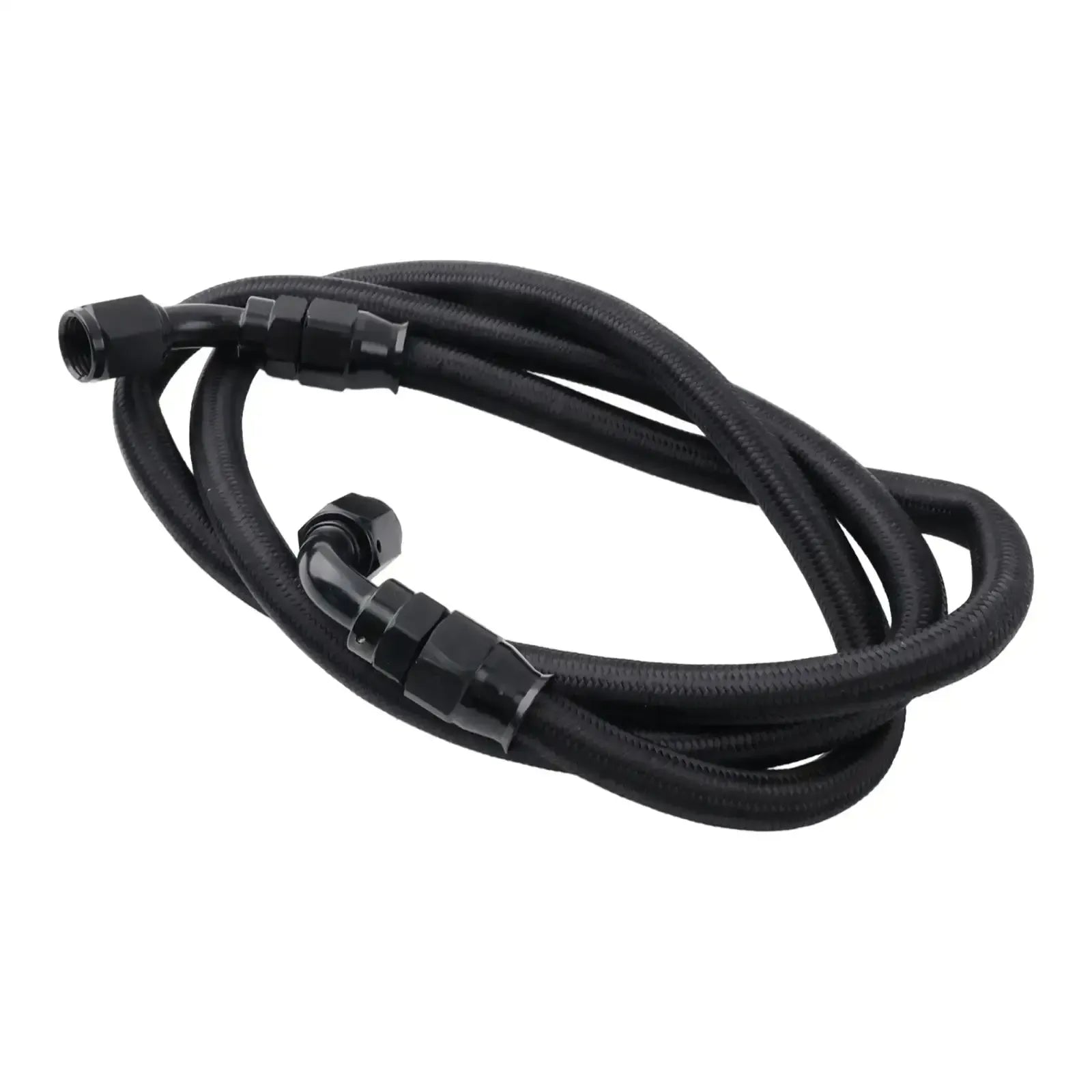

• High-pressure steering hose included
• 360° swivel overflow fitting

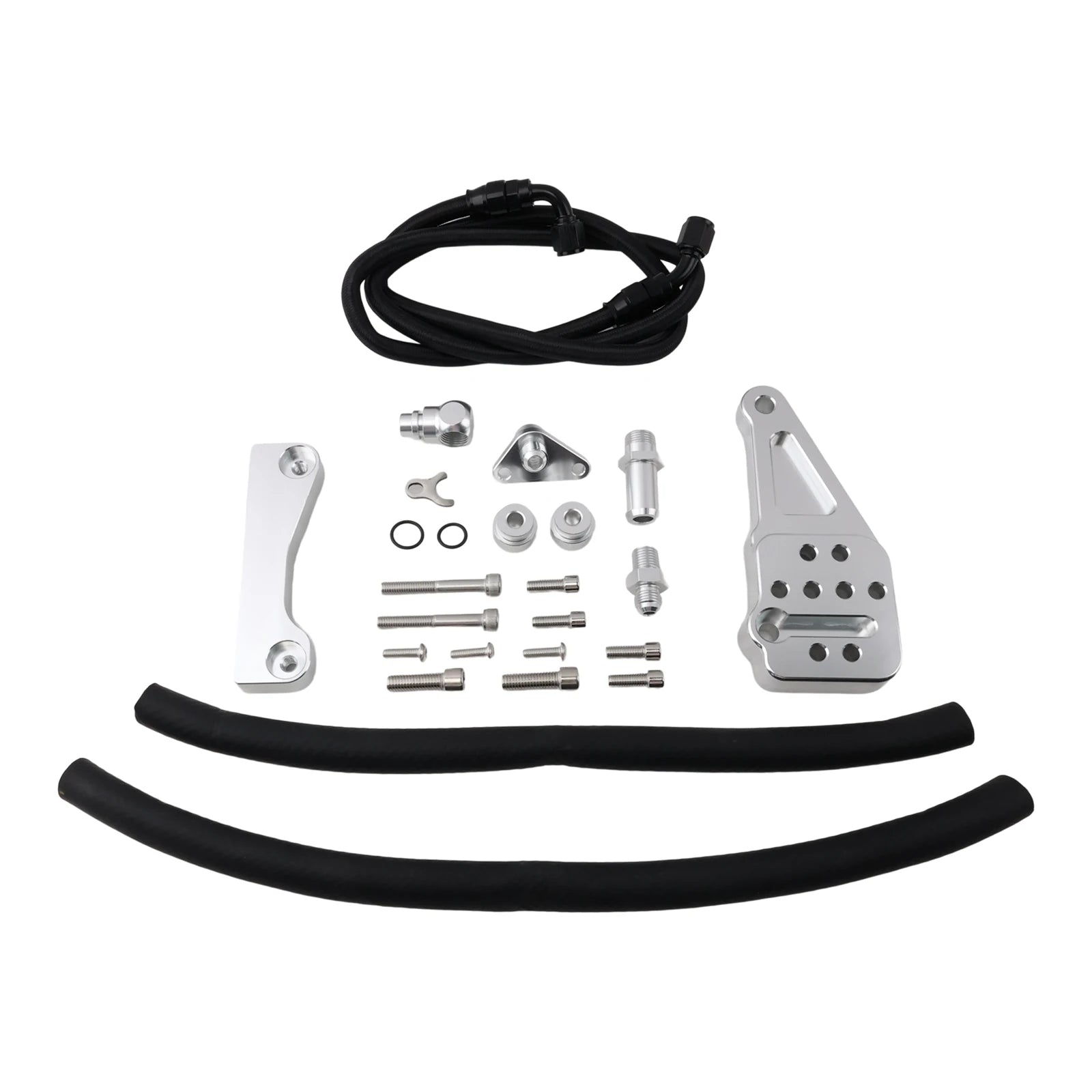

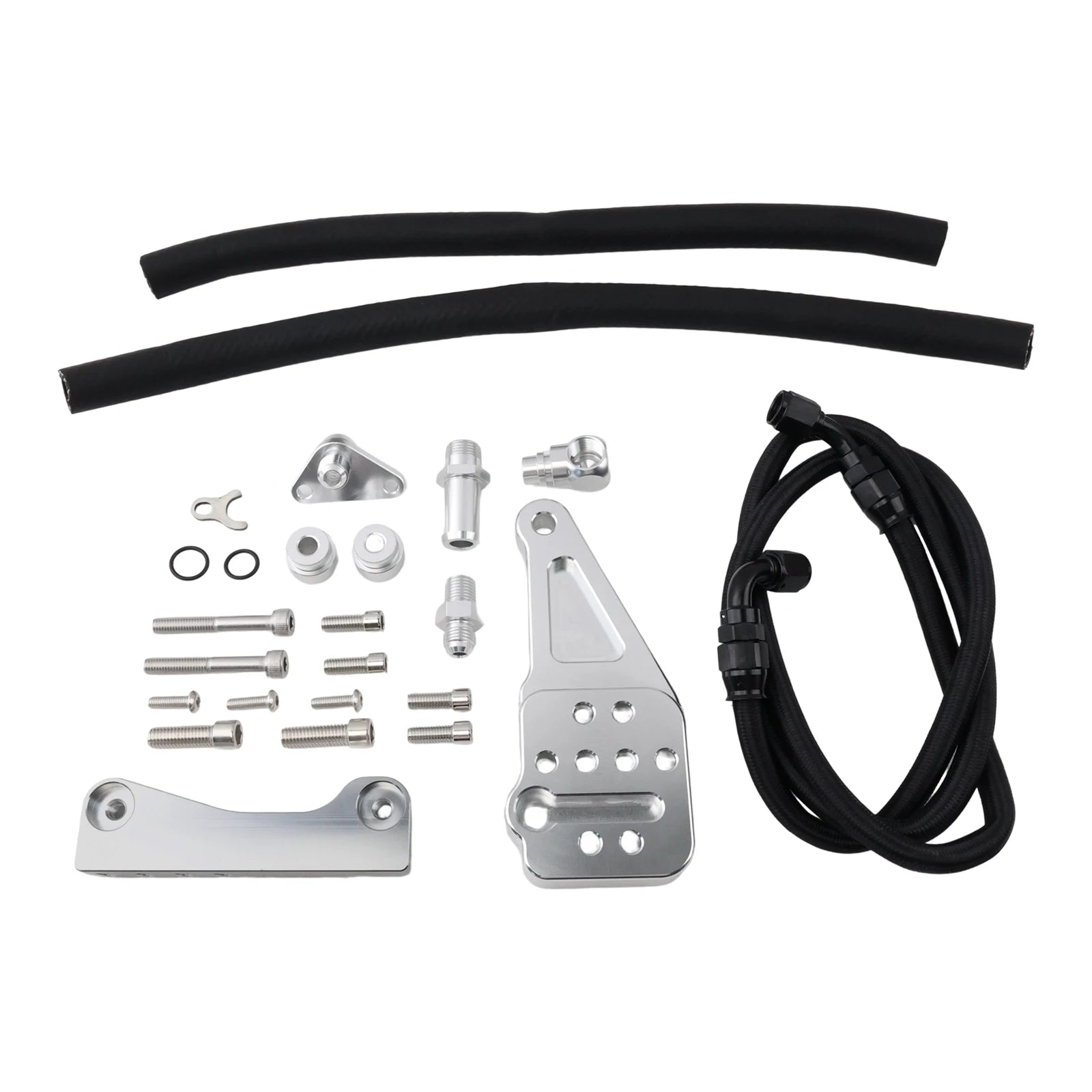

• Supplied with AN fittings, clamps and hardware
• 18" overflow / cooler hose included

Fitment

• 2002-2004 Acura RSX
• 2005-2006 Acura RSX
• K-swapped EG / DC2
• K-swapped EK using EKK2 mounts only
• Compatible with 02-04 or 05-06 RSX power steering pumps

Important

• Requires removal of the A/C system
• Will not fit EK models using EKK1 mounts
• 02-04 pumps use -6AN fittings
• 05-06 pumps use larger -8AN fittings and higher-flow steering hardware
• Power steering operation may be louder than the factory setup
• Some K-swap installations may require additional 3/8" hose depending on reservoir location
